Sur-Ron Light Bee X 2026

Electric, US version

Partly verified

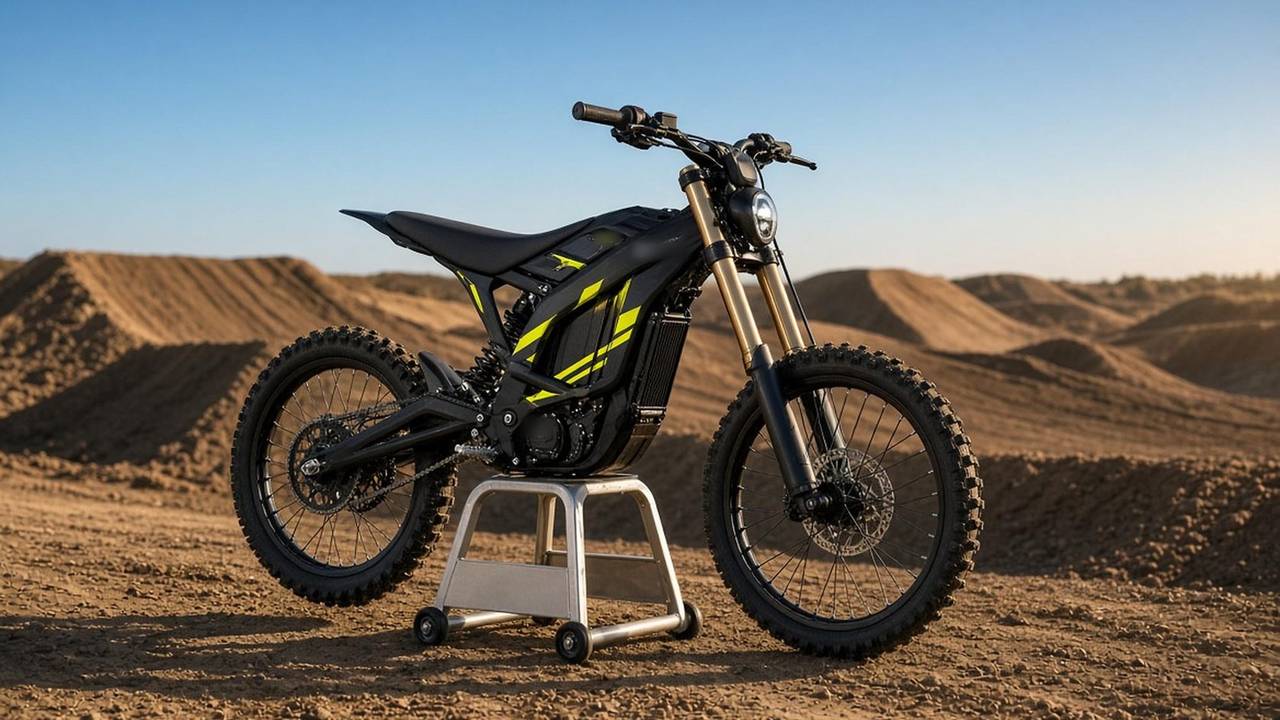

Illustration: a Sur-Ron electric dirt bike, not this exact model.

From the owner’s manual: front tire 70/100-19, p. 13.9; rear tire 3.00-18, p. 13.9. Checked 8 Nov 2026.

Seat height
830 mm
Manual p. 13.9
Weight
59 kg
Manual p. 13.9

No CPSC recall found for the 2026 Sur-Ron Light Bee X, checked . Recalls

Spec card PDF

Electric driveline

9 of 10 filled

Battery
72 V, 35 Ah
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Battery energy
Not yet verified
Stock controller
MTPA/MTPV FOC Controller
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Motor
PMSM
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Rated power
4000w
Verified, read off the manual page: Manual p. 13.9 · checked source [1] · as printed
Maximum power
10kW
Verified, read off the manual page: Manual p. 13.9 · checked source [1] · as printed
Top speed
80km/h
Verified, read off the manual page: Manual p. 13.9 · checked source [1] · as printed
Pedals or footpegs
Foot Pegs
Verified, read off the manual page: Manual p. 10.5 · checked source [1] · as printed
Charging time
Charge time 4h
Verified, read off the manual page: Manual p. 13.9 · checked source [1] · as printed
Claimed range
75 km (47 mi)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]

Wheels and tires

2 of 4 filled

Front rim
Not yet verified
Rear rim
Not yet verified
Front tire
70/100-19
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Rear tire
3.00-18
Verified, read off the manual page: Manual p. 13.9 · checked source [1]

Suspension

2 of 7 filled

Fork
Not yet verified
Fork travel
200 mm (≈ 7.9 in, converted by MotoXSports)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Shock travel
210 mm (≈ 8.3 in, converted by MotoXSports)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Stock fork spring rate
Not yet verified
Stock shock spring rate
Not yet verified
Static sag, bike only
Not yet verified
Race sag, rider on
Not yet verified

Service specs

1 of 2 filled

Fork oil
Not yet verified
Brake fluid
DOT4
Verified, read off the manual page: Manual p. 10.1 · checked source [1]

Maintenance

3 of 4 filled

Tire pressure (off-road)
225kPa front / 225 kPa rear (Off-road)
Verified, read off the manual page: Manual p. 10.11 · checked source [1]
Chain slack
15-30mm
Verified, read off the manual page: Manual p. 10.12 · checked source [1]
Spark plug and gap
Not yet verified
Brake pad wear limit
If the thickness of the front or rear brake pads is less than 2.5 mm, please replace the brake pads.
Verified, read off the manual page: Manual p. 10.9 · checked source [1]

Dimensions

3 of 3 filled

Seat height
830 mm (≈ 32.7 in, converted by MotoXSports)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Wheelbase
1255 mm (≈ 49.4 in, converted by MotoXSports)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Weight (dry/Curb weight)
59 kg (≈ 130 lb, converted by MotoXSports)
Verified, read off the manual page: Manual p. 13.9 · checked source [1]

Chassis

2 of 2 filled

Ground clearance
270mm
Verified, read off the manual page: Manual p. 13.9 · checked source [1]
Overall length, width and height
1850x780x1080mm
Verified, read off the manual page: Manual p. 13.9 · checked source [1]

Rider

1 of 1 filled

Speed limiter, as printed
EP Mode(mode 1): When in EP Mode, the motorcycle has a softer output power and acceleration. It is suitable for user who are not familiar with the motorcycle's handling.
Verified, read off the manual page: Manual p. 6.2 · checked source [1]

Gearing

0 of 5 filled

Stock front sprocket, stock rear sprocket, chain pitch, stock chain links, stock final drive ratio
Not yet verified
Solid marks are owner's-manual pages; hollow marks are manufacturer web or spec-sheet figures still waiting on a manual page. Last reviewed . Rows marked not yet verified are blank on purpose.

Buying parts

The stock sizes and specs this bike left the factory with, each with its source. Take them to any shop.

Retailer links below are affiliate links: we may earn a commission, at no cost to you, and it never changes the specs. Affiliate disclosure.

Tires
Front tire 70/100-19 Owner's manual p. 13.9Rear tire 3.00-18 Owner's manual p. 13.9Front tires 70/100-19 at MotoSportTubes 70/100-19 at MotoSportDirt bike tires at MotoSport

In stock at MotoSport

Prices from MotoSport’s catalog of Nov 16, 2026; check today’s price before you buy.

Front tire, stock size 70/100-19

Prices and stock from MotoSport's product catalog on Nov 16, 2026; they change, so check the price at MotoSport before you buy. Products are chosen by exact stock size, code or oil viscosity from the specs above, known brands first, then price. We have not tested them.

6 part specs not yet verified; see data coverage.

Gearing tool

The calculator prefills from this bike once its stock sprockets are verified. It works with any numbers in the meantime.

What's missing

19 of 33 fields read off a manual page.

Not yet verified (14): front sprocket, rear sprocket, chain pitch, chain links, front rim, rear rim, fork, fork spring rate, shock spring rate, static sag, race sag, battery energy (wh), controller amps, fork oil.

See coverage for every bike

Sources

  1. 1
    Surron Light Bee X Owner's Manual (North America), Version QF26/B-NA-V1.0, Issue Date 2026.05.22, filed on surron.com/manual under 'Light Bee X 2026'; no model year printed, Sur-Ron's own site files it under model year 2026 (owner decision )pp. 6.2, 10.1, 10.5, 10.9, 10.11, 10.12, 13.9Manual page, verified. Covers front tire, rear tire, fork travel, shock travel, brake fluid, seat height, wheelbase, weight (dry/Curb weight), weight, as labelled, tire pressure (off-road), chain slack, brake pad wear limit, ground clearance, overall length, width and height, battery, battery capacity (Ah), motor, rated power, maximum power, top speed, claimed range, pedals or footpegs, charging time, speed limiter, as printed, stock controller; checked .

Get the manual from the maker We read Surron Light Bee X Owner's Manual (North America), Version QF26/B-NA-V1.0, Issue Date 2026.05.22, filed on surron.com/manual under 'Light Bee X 2026' for this page. Sur-Ron’s own manual site: Sur-Ron. Every manual we have read is in the manual finder.

Always confirm against the manual for your exact year before ordering parts or setting up suspension. Torque specs are deliberately not published here. How we verify a value.

Your manual prints something different? Report a value with the page it is on; every fix is listed in the corrections log.
