Suzuki RM-Z250 2027

Motocross, 249cc 4T

Partly verified

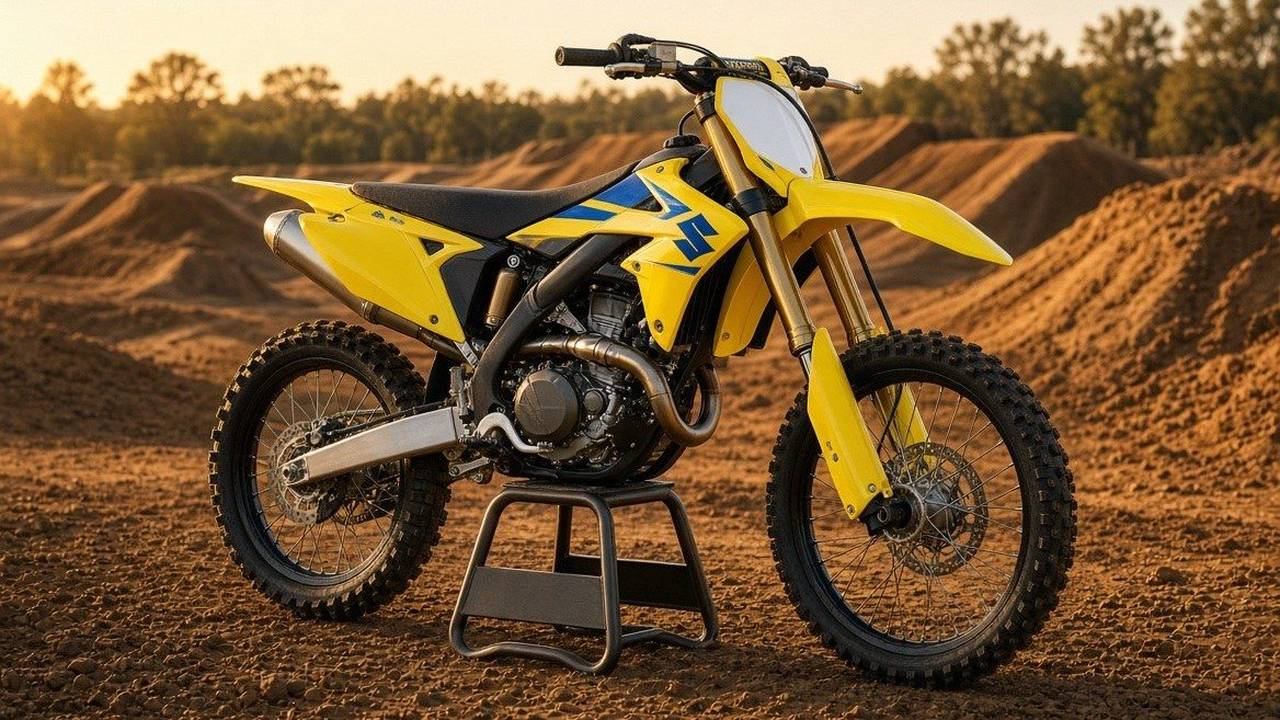

Illustration: a Suzuki motocross bike, not this exact model.

Motocross

Stock-size parts in stock at MotoSport

From the owner’s manual: engine oil capacity 950 ml, p. 6-26; coolant 1100 ml, p. 3-6; front tire 80/100-21 51M, p. 6-40; rear tire 100/90-19 57M, p. 6-40. Checked 6 Nov 2026.

Engine oil
950 ml
Manual p. 6-26
Coolant
1100 ml
Manual p. 3-6

Model year on file: 2027 only. Other years are added as their manuals are read.

No CPSC recall found for the 2027 Suzuki RM-Z250, checked . Recalls

Spec card PDF

Gearing

2 of 5 filled

Stock front sprocket
Not yet verified
Stock rear sprocket
Not yet verified
Chain pitch
520
Research level: Spec sheet (research) · checked source [1]
Stock final drive ratio
Not yet verified

Wheels and tires

2 of 4 filled

Front rim
Not yet verified
Rear rim
Not yet verified
Front tire
80/100-21 51M
Verified, read off the manual page: Manual p. 6-40 · checked source [2]
Rear tire
100/90-19 57M
Verified, read off the manual page: Manual p. 6-40 · checked source [2]

Suspension

4 of 7 filled

Fork
Inverted telescopic, coil spring, oil damped, adjustable damping force
Research level: Spec sheet (research) · checked source [1]
Fork travel
Not yet verified
Shock travel
Not yet verified
Stock fork spring rate
5 N/mm
Verified, read off the manual page: Manual p. 2-14 · checked source [2]
Stock shock spring rate
52 N/mm
Verified, read off the manual page: Manual p. 2-19 · checked source [2]
Static sag, bike only
Not yet verified
Race sag, rider on
110 mm (4.33 in)
Verified, read off the manual page: Manual p. 2-20 · checked source [2]

Fluids and capacities

5 of 5 filled

Engine oil spec
SAE 10W-40, API SJ/SL/SM/SN, JASO MA
Verified, read off the manual page: Manual p. 3-3 · checked source [2]
Engine oil capacity (changing oil only)
950 ml (≈ 32.1 fl oz, converted by MotoXSports)
Verified, read off the manual page: Manual p. 6-26 · checked source [2]
Engine oil capacity, with filter change
1000 ml (≈ 33.8 fl oz, converted by MotoXSports)
Verified, read off the manual page: Manual p. 6-26 · checked source [2]
Coolant capacity
1100 ml (≈ 37.2 fl oz, converted by MotoXSports)
Verified, read off the manual page: Manual p. 3-6 · checked source [2]
Fuel capacity
6.3 L (≈ 1.66 gal, converted by MotoXSports)
Verified, read off the manual page: Manual p. 2-7 · checked source [2]

Service specs

4 of 6 filled

Fork oil
Not yet verified
Brake fluid
DOT4
Verified, read off the manual page: Manual p. 6-36 · checked source [2]
Coolant type
“SUZUKI SUPER LONG LIFE COOLANT” or “SUZUKI LONG LIFE COOLANT”
Verified, read off the manual page: Manual p. 3-5 · checked source [2]
Fuel octane
premium unleaded gasoline with an octane rating of 95 or higher (Research method)
Verified, read off the manual page: Manual p. 3-2 · checked source [2]
Idle speed
2200 ± 50 r/min
Verified, read off the manual page: Manual p. 6-27 · checked source [2]
Valve clearance
Not yet verified

Maintenance

4 of 4 filled

Tire pressure (off-road)
70-110 kPa (10-16 psi) front and rear
Verified, read off the manual page: Manual p. 6-39 · checked source [2]
Chain slack
35-45 mm (1.4-1.7 in), rear wheel off the ground
Verified, read off the manual page: Manual p. 6-32 · checked source [2]
Spark plug and gap
NGK CR8EIB-10, gap 0.9-1.0 mm
Verified, read off the manual page: Manual p. 6-18 · checked source [2]
Brake pad wear limit
If a front or rear pad is worn to the grooved limit line, both front or both rear pads must be replaced with new ones.
Verified, read off the manual page: Manual p. 6-37 · checked source [2]

Dimensions

3 of 3 filled

Seat height
955 mm (37.5 in.)
Research level: Spec sheet (research) · checked source [1]
Wheelbase
1485 mm (58.46 in.)
Research level: Spec sheet (research) · checked source [1]
Weight
106 kg (233 lb.)
Research level: Spec sheet (research) · checked source [1]

Engine

1 of 1 filled

Transmission
5-speed transmission
Verified, read off the manual page: Manual p. 2-9 · checked source [2]
Solid marks are owner's-manual pages; hollow marks are manufacturer web or spec-sheet figures still waiting on a manual page. Last reviewed . Rows marked not yet verified are blank on purpose.

Buying parts

The stock sizes and specs this bike left the factory with, each with its source. Take them to any shop.

Service kit, as the manual prints it

What a routine service on this bike takes, job by job: the manual’s own figures. Check your own bike’s manual before you work on it.

  • Engine oil change

    Engine oil spec
    SAE 10W-40, API SJ/SL/SM/SN, JASO MA Owner's manual p. 3-3
    Engine oil capacity (changing oil only)
    950 ml (≈ 32.1 fl oz, converted by MotoXSports) Owner's manual p. 6-26
    Engine oil capacity, with filter change
    1000 ml (≈ 33.8 fl oz, converted by MotoXSports) Owner's manual p. 6-26

    Engine oil, every bike

  • Spark plug

    Spark plug and gap
    NGK CR8EIB-10, gap 0.9-1.0 mm Owner's manual p. 6-18

    Spark plugs, every bike

  • Coolant

    Coolant type
    “SUZUKI SUPER LONG LIFE COOLANT” or “SUZUKI LONG LIFE COOLANT” Owner's manual p. 3-5
    Coolant capacity
    1100 ml (≈ 37.2 fl oz, converted by MotoXSports) Owner's manual p. 3-6

    Coolant capacity, every bike

  • Brake fluid

    Brake fluid
    DOT4 Owner's manual p. 6-36

Retailer links below are affiliate links: we may earn a commission, at no cost to you, and it never changes the specs. Affiliate disclosure.

Chain
Chain pitch 520 Manufacturer spec sheet (research)Stock chain links 114 Manufacturer spec sheet (research)520 chains at MotoSport520 master links at MotoSport
Tires
Front tire 80/100-21 51M Owner's manual p. 6-40Rear tire 100/90-19 57M Owner's manual p. 6-40Front tires 80/100-21 at MotoSportTubes 80/100-21 at MotoSportRear tires 100/90-19 at MotoSportTubes 100/90-19 at MotoSport
Engine oil
Engine oil spec SAE 10W-40, API SJ/SL/SM/SN, JASO MA Owner's manual p. 3-3Engine oil capacity (changing oil only) 950 ml (≈ 32.1 fl oz, converted by MotoXSports) Owner's manual p. 6-26Engine oil at MotoSport
Coolant
Coolant capacity 1100 ml (≈ 37.2 fl oz, converted by MotoXSports) Owner's manual p. 3-6Coolant at MotoSport
Suspension springs
Stock fork spring rate 5 N/mm Owner's manual p. 2-14Stock shock spring rate 52 N/mm Owner's manual p. 2-19Suspension at MotoSport

In stock at MotoSport

Prices from MotoSport’s catalog of Nov 16, 2026; check today’s price before you buy.

Front tire, stock size 80/100-21

Rear tire, stock size 100/90-19

Chain, stock pitch 520, stock length 114 links

Chains are sold by link count; this bike's stock chain is 520 pitch, 114 links.

Engine oil, stock viscosity 10W-40

Matched on viscosity only. The manual prints: SAE 10W-40, API SJ/SL/SM/SN, JASO MA. Check the label for the rest.

Prices and stock from MotoSport's product catalog on Nov 16, 2026; they change, so check the price at MotoSport before you buy. Products are chosen by exact stock size, code or oil viscosity from the specs above, known brands first, then price. We have not tested them.

2 part specs not yet verified; see data coverage.

Gearing tool

The calculator prefills from this bike once its stock sprockets are verified. It works with any numbers in the meantime.

What's missing

16 of 31 fields read off a manual page.

Not yet verified (9): front sprocket, rear sprocket, front rim, rear rim, fork travel, shock travel, static sag, fork oil, valve clearance.

From a spec sheet, awaiting a manual page (6): chain pitch, chain links, fork, seat height, wheelbase, weight.

See coverage for every bike

Sources

  1. 1
    Suzuki 2027 RM-Z250 specifications (suzukicycles.com)Manufacturer web or spec sheet, research level. Covers chain pitch, stock chain links, fork, seat height, wheelbase, weight; checked .
  2. 2
    Suzuki RM-Z250 Owner's Manual, 99011-46K55-01A (2027; the manual prints no model year, the owner confirmed it); owner-supplied copy of Suzuki Australia's PDFpp. 2-7, 2-9, 2-14, 2-19, 2-20, 3-2, 3-3, 3-5, 3-6, 6-18, 6-26, 6-27, 6-32, 6-36, 6-37, 6-39, 6-40Manual page, verified. Covers front tire, rear tire, stock fork spring rate, stock shock spring rate, race sag, rider on, engine oil spec, engine oil capacity (changing oil only), coolant capacity, fuel capacity, tire pressure (off-road), chain slack, spark plug and gap, engine oil figure, as labelled, engine oil capacity, with filter change, brake fluid, coolant type, fuel octane, idle speed, transmission, brake pad wear limit; checked .

Get the manual from the maker We read Suzuki RM-Z250 Owner's Manual, 99011-46K55-01A for this page. Suzuki’s own manual site: Suzuki Cycles owners page (Genuine Suzuki Manuals). Every manual we have read is in the manual finder.

Always confirm against the manual for your exact year before ordering parts or setting up suspension. Torque specs are deliberately not published here. How we verify a value.

Your manual prints something different? Report a value with the page it is on; every fix is listed in the corrections log.
